Description

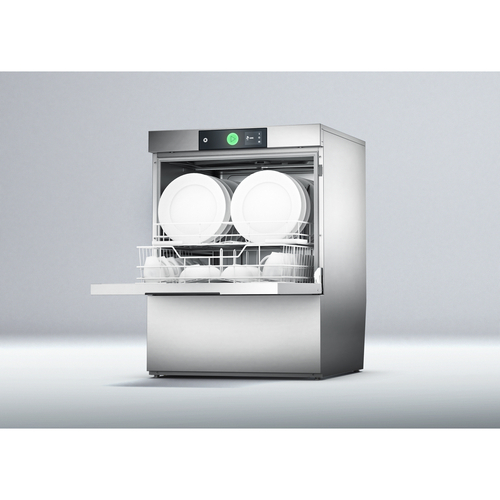

Model: CARES-10C
Front Loading Double Basket Dishwasher with Thermal Disinfection
Dimensions: 600 x 652 x 825mm
Basket size: 500 x 500mm
Capacity: Up to 4 cycles per hour (60 place settings)
Choice of programmes: 3 min Short Cycle
9 min Standard Cycle
10 min Thermal Disinfection Cycle
12 min Fill & Dump Cycle

Electrical requirements: 6.8kW 400/50/3 (3 x 16 amps)
Configurable to: 4.7kW 230/50/1 (25 amps)

Standard features include: –
• Dedicated double racks to accommodate up to 10 place settings of mixed ware
• 3-minute quick wash and rinse cycle
• 9-minute standard cycle – prewash, wash, steam rinse and drying
• Selectable 10 min thermal disinfection programme (Ao60)
• Visiotronic-Touch control, single touch button operation with glass fronted display
• WashSmart providing data access with Wi-Fi connectivity through dedicated Hobart App.
• ‘TOP-DRY’ unique drying cycle – no drying or polishing, no steam escape into the room
• ‘2-In-1’ Double Racking increases capacity and flexibility whilst lowering running costs
• Unique cutlery programme with steam – eliminates pre-soaking and delivers superb results
• Intelligent Soil Sensing optimises water usage depending on soil levels in the wash water
• Integral detergent and rinse aid dosing pumps
• Integral drain pump and integral rinse booster pump for ease of installation
• Automatic self-flushing cycle when draining
• Class ‘A’ type air gap
• Flexible hoses for connection to services
