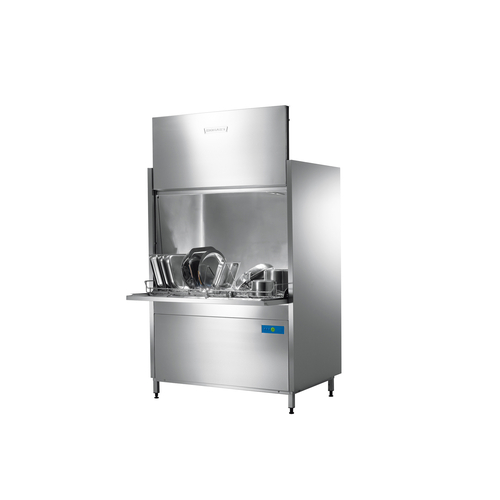

Model: UXT-10B

Dimensions: 1375 x 945 x 1984mm
Door Opening Height: 2417mm adjustable to 2200mm
Useable access height: 860mm/650mm
Capacity: Up to 30 cycles per hour
120, 240 & 360 second cycles plus ‘continuous’ mode
Electric: 21.6kW (15.0kW booster), 400/50/3ph, 3 x 35amps
Standard features include:-
• Powerful 4 spoke Turbolator Wash System – delivers real cleaning power, reduces the need for manual pre-cleaning or soaking
• Pre-wash Function – unique three stage washing process incorporating Genius X² active filter system provides pre-wash, wash & rinsing functions!
• ‘Accurinse’ ultra-low volume rinse using just 8.0ltrs per cycle reduces operating costs by up to 20%!
• ‘Smartronic’ single button control with cycle status indication plus low salt & low chemical warning and on demand temperature indication.
• ‘Complete’ – a selectable hygiene programme for the removal of soil deposits, starch and lime from the wash tank and wash system
• Counter balanced split door – easy to use, easy access for cleaning
• Strainer/filter recognition – prevents use of the machine if filters are not in place
• Base rack dimensions – 1240 x 700mm

Plus:
o Smooth, counterbalanced door mechanism with safety “park” position
o Integral drain pump and integral rinse booster pump for ease of installation
o Accurate detergent and rinse aid dosing pumps with level sensing
o Automatic self-flushing cycle when draining
o Easily removable, one piece, anti-block wash and rinse arms
o Class ‘AB’ type air gap
o Flexible hoses for connection to services
o Base rack, open rack and bakery sheet insert
